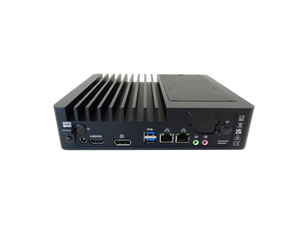

Fanless Mini Rugged Computer
Fanless Mini - Intel 12th Gen Mobile - IP51
FM-12M-51
Product Code:
Key Features
· Intel® Core™ 12th Gen i3/i5/i7 processor
· Upto 64GB DDR4-3200 memory
· Dual LAN and options including Wi-Fi or 4G
· Operating Range: -20C to 60C
Description
The Fanless Mini is our 12th Gen rugged computer powered by up to an i7 processor. Our Industrial rugged Fanless Mini is designed to operate in harsh environments where standard consumer-grade computers would not be able to function reliably. These environments can include extreme temperatures, high levels of dust and moisture, and exposure to physical shock and vibration, commonly used in industries like manufacturing, aerospace, military, and agriculture.
IP Rating details
This product has been given an IP rating of 51, this means it will not be affected by dust and has limited protection against vertically falling drops of water or condensation, this make it ideal for "dirty" and hard to control environments
Maintenance
Given its IP51 rating maintenance requirements are practically zero, no dust will actively be drawn to the system, and any settling dust will not easily be able to penetrate the enclosure
Specifications
Technical
Form Factor
Fanless Mini Rugged Computer
Processor
Intel i3 1210U - 6 Cores / 8 Threads upto 4.40 GHz - 10MB Cache
Intel i5 1235U - 10 Cores / 12 Threads upto 4.40 GHz - 12MB Cache
Intel i7 1255U - 10 Cores / 12 Threads upto 4.70 GHz - 12MB Cache
Memory
Slots: 2 x SO-DIMM Slots
MAX Capacity: 64GB
Type: DDR4-3200 1.2V SO-DIMM
ECC Support: No
Storage
Storage 1 Max: 4TB M.2 NVME 2280 PCIe 3.0
Storage 2 Max: 8TB 2.5" SATA SSD
Graphics Controller
Intel UHD Graphics for 12th Gen Intel Processors
Graphics Interface
1 x DisplayPort 7680 x 4320P @ 60Hz
1 x HDMI 2.0 4096 x 2160 @ 60Hz
Network Interface
I219-V - 1 x RJ45 - 10/100/1000 Mbps
RTL8111H - 1 x RJ45 - 10/100/1000 Mbps
Network Options
RTL8821CE Wi-Fi 5 IEEE 802.11 b/g/n/ac - 2.4GHz/5GHz + Bluetooth 4.2
AX210 - Wi-Fi 6E IEEE 802.11 b/g/n/ac/ax - 2.4GHz/5GHz/6GHz + Bluetooth 5.3
4G Option
Network Features
Wake-On-Lan
PXE
Remote Management
N/A
Hardware Monitoring
Watchdog On-Board
Encryption
fTPM 2.0 (Intel PTT)
Input Output
I/O Front
Power switch
LED Front
Power
I/O Rear
DC-In 12-19V, 2x RJ45 for LAN, (Opt 2x USB2.0 or 1x RS232), 2x USB3.0, 1x Display Port, 1x HDMI, 1 x 3.5mm Audio-Out, 1 x 3.5mm Mic-In
LED Rear
Network Uplink/Activity
I/O Optional
Dual Antenna
Power
Power Input
2.5 x 5.5mm DC Jack
Input Voltage
12-19V
Consumption
70w
Physical Specification
Dimensions
51 x 177 x 208 mm
Weight
2.4 KG
Case Type
Fanless
Case Material
Aluminum
Accessories
Power supply, power cord
Operating and Storage
Operational Temp
-20°c to 60°c (-4°F to 140°F)
Storage Temp
-20°c to 70°c (-4°F to 158°F)
Max relative humidity
5% to 95%
Cooling type
Passive Cooling
Other
Supported OS
Windows 10 - 64 bit
Windows 11 - 64 bit
Linux
Optional Accessories
Wireless Antenna
Mounting Options
VESA KIT
Certifications
CE, UKCA, RoHS, FCC , WEEE
Manufacturer
Warranty
3 Years
