Fanless Mini Rugged Computer
Fanless Mini - AMD Ryzen V2000 Embedded Quad Display - IP51
FM-V2EQD-51
Product Code:
Key Features
· AMD Ryzen Embedded V2516
· 4x 4K display
· 1x Realtek 1GbE LAN, 1x Realtek 2.5GbE LAN
· AMD Radeon™ Graphics
Description
The Fanless Mini AMD Ryzen V2000 embedded system offers high-performance computing with its quad-core architecture. With 4x4K display ports and AMD Radeon Graphics supporting immersive visuals across multiple displays. Its fanless design ensures silent operation and its IP51 rating adds durability in challenging environments. Ideal for applications demanding efficient multitasking and robust graphics capabilities.
IP Rating details
This product has been given an IP rating of 51, this means it will not be affected by dust and has limited protection against vertically falling drops of water or condensation, this make it ideal for "dirty" and hard to control environments
Maintenance
Given its IP51 rating maintenance requirements are practically zero, no dust will actively be drawn to the system, and any settling dust will not easily be able to penetrate the enclosure
Specifications
Technical
Form Factor
Fanless Mini Rugged Computer
Processor
AMD V2516 - 6 Cores / 12 Threads - 2.10 GHz - 3MB Cache
Memory
Slots: 2x SO-DIMM Slots
MAX Capacity: 64GB
Type: Dual Channel DDR4 3200 MHz
ECC Support: Yes
Storage
Storage 1 Max: 4TB M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x4 for SSD
Graphics Controller
AMD Radeon™ Graphics 1500 MHz
Graphics Interface
3 x DP 1.2a, Max resolution up to 3840x2160 @60Hz
1 x DP 1.4, Max resolution up to 5120x2880 @120Hz
Network Interface
RJ45 - Realtek RTL8125BG with 10/100/1000/2500 Mbps
RJ45 - Realtek R8111EPV with 10/100/1000 Mbps
Network Options
AX201 - Wi-Fi 6 + Bluetooth 5.2 - IEEE 802.11 b/g/n/ac/ax - 2.4GHz/5GHz
Network Features
Support DASH
Remote Management
N/A
Hardware Monitoring
Hardware Watchdog
Encryption
TPM 2.0
Input Output
I/O Front
Power Switch
LED Front
Power LED

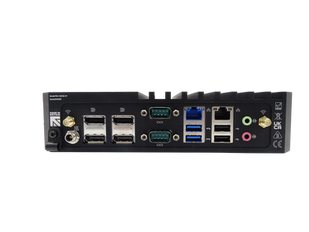

I/O Rear
2 x COM, DC-In 12-28V, 2x RJ45 for LAN, 2x USB2.0, 2x USB3.0, 4x Display Port, Line out, MIC In
LED Rear
Network Uplink/Activity
I/O Optional
Dual Antenna
Power
Power Input
2.5 x 5.5mm DC Jack (Screw Type)
Input Voltage
12-28V
Consumption
12 - 48w
Physical Specification
Dimensions
49 x 208 x 180 mm
Weight
2.4 KG
Case Type
Fanless
Case Material
Aluminum
Accessories
Power Supply, Power cord
Operating and Storage
Operational Temp
-10°c to 50°c (14°F to 122°F)
Storage Temp
-20°c to 60°c (-4°F to 140°F)
Max relative humidity
5% to 95%
Cooling type
Passive Cooling
Other
Supported OS
Windows 10 x 64
Windows 11 x 64
Optional Accessories
Wireless Antenna
Mounting Options
VESA KIT
Certifications
CE, UKCA, RoHS, FCC , WEEE
Manufacturer
Warranty
3 years
