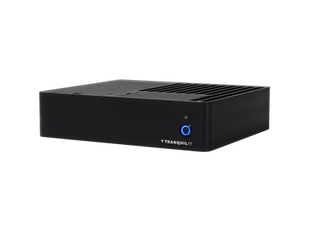

Fanless Mini Rugged Computer

Fanless Mini - Intel 10th Gen Mobile - IP51

MR-10MDL-51

Product Code:

Key Features

· Intel® Core™ 10th Gen i3/i5/i7 processor
· Upto 64GB DDR4-2666 memory
· Dual 1GbeLAN and options including Wi-Fi or 4G

Description

The Fanless Mini Rugged has great flexibility including legacy IO such as RS232. Other features include HDMI, USB3.0 and powered by up to an i7. The Mini Rugged is a versatile product ensuring reliability with a wide range of I/O options.

intel logo

IP Rating details

This product has been given an IP rating of 51, this means it will not be affected by dust and has limited protection against vertically falling drops of water or condensation, this make it ideal for "dirty" and hard to control environments

dust and water

Maintenance

Given its IP51 rating maintenance requirements are practically zero, no dust will actively be drawn to the system, and any settling dust will not easily be able to penetrate the enclosure

Specifications

Technical

Form Factor

Fanless Mini Rugged Computer

Processor

Intel i3 10110U - 2 core / 4 threads - 2.10 Ghz - 4MB Cache
Intel i5 10210U - 4 core / 8 threads - 1.60 Ghz - 6MB Cache
Intel i7 10710U - 6 core / 12 threads - 1.10 Ghz - 12MB Cache

Memory

Slots: 2 x SO-DIMM Slots
MAX Capacity: 64GB
Type: DDR4-2666 1.2V SO-DIMM
ECC Support: No

Storage

Storage 1 Max: 4TB M.2 NVME 2280 PCIe 3.0 x4
Storage 2 Max: 8TB 2 x 2.5" SATA SSD

Graphics Controller

Intel UHD Graphics for 10th Gen Intel Processors

Graphics Interface

1 x DisplayPort 1.2 - 4096 x 2160 @ 60HZ
1x HDMI 1.4 – 4096 x 2160 @30HZ

Network Interface

RTL8111H - 2 x RJ45 - 10/100/1000 Mbps

Network Options

RTL8188EE - Wi-Fi 4 IEEE 802.11 b/g/n - 2.4GHz
RTL8821AE - Wi-Fi 5 IEEE 802.11 b/g/n/ac - 2.4GHz/5GHz Dual Band + Bluetooth 4.0
4G Option (instead of WiFi): Quectel LTE EC25

Network Features

Wake-On-Lan
PXE (UEFI and Legacy)

Remote Management

N/A

Hardware Monitoring

Watchdog On-Board

Encryption

fTPM 2.0 (Intel PTT)

Input Output

I/O Front

Power Switch

LED Front

Power

I/O Rear

2x COM, DC-In 12-19V, 2x RJ45 for LAN, (Optional 4x USB2.0), 2x USB3.0, 1x DP, 1x HDMI, 1 x 3.5mm Audio-Out, 1 x 3.5mm Mic-In

LED Rear

Network Uplink/Activity

I/O Optional

Dual Antenna

Power

Power Input

2.5 x 5.5mm DC Jack

Input Voltage

12-19V

Consumption

10 - 60w

Physical Specification

Dimensions

49 x 208 x 180 mm

Weight

2.4 KG

Case Type

Fanless

Case Material

Aluminum

Accessories

Power supply, power cord

Operating and Storage

Operational Temp

-20°c to 50°c (-4°F to 122°F)

Storage Temp

-20°c to 80°c (-4°F to 176°F)

Max relative humidity

5% to 95%

Cooling type

Passive Cooling

Other

Supported OS

Windows 10 - 64 bit
Windows 11 - 64 bit
Linux

Optional Accessories

Wireless Antenna

Mounting Options

VESA KIT

Certifications

CE, UKCA, RoHS, FCC , WEEE

Manufacturer

Warranty

3 Years
